The Illuminator Inspect-Lite TM

This Light Shows Everything

60W 4500Lm max. & 30W - 2300Lm max. - Color Corrective - Dimmable

Part Number       Quantity/box
AL-S020-060W     1 light/bx. 2/case
AL-S020-030W     1 light/bx. 2/case
AL-S020-001         1 dimmer

Note: Dimmer works with both 1 meter & .6 meter lights

PRODUCT SPECIFICATIONS: (blue indicates unique features)

    1 Power

		AL-S020-060W (1M long light) 60 watts

AL-S020-030W (.6M long light) 30 watt
100-120Vac

    2 Voltage (both lights)

		3-prong US plug male + female

			    o allowing multiple light bars to be powered by one electrical outlet, connected in series
Optional Dimmer controls up to 2 light bars connected in series Part No. AL-S020-001

    3 PF (both lights)

		0.9

    4 Efficiency (both lights)
    >83%

    5 illumination
    1M light = 3500 – 4500Lm .6M light = 1700-2300Lm

    6 IR
	>70

    7 Color temperature
	5500-6000K (CW)

    8 Working temperature
	-20~+40°C

    9 Dimension

		1 M Light 1000mm (39.37”) L x 60.325mm (2.275”) W x 92.075mm (3.625”) H
.6M Light 610mm (24.02”) L x 60.325mm (2.275”) W x 92.075mm (3.625”) H

    10 Mounting
	It can be rotated the angle.

    11 LED QTY
	1M light = 36 pcs 2W Bridgelux chip .6M light = 24pcs 2W Bridgelux chip

    12 Life time
	>30000 hours

    13 IP grade
	1M = IP65 .6M = IP44

    14 LED color
	Single color cool white

    15 Lighting angle
	45°

    16 Dimmer
	Dimmer controls up to 2 lights plugged in sequence Part No. AL-S02-001

    17 WARRANTY
	2 Years - against manufacturing defects

Adjustable Mounting Brackets

The Illuminator’s” Targeted % of Light Vs Natural Daylight-CRI (Color Rendering Index) = 99.35% or better

LIGHT AND RENDERING CHART


Ideal For:
WOOD:
		for inspecting veneers, wood components and finishes,
horizontal inspection lighting at individual work-stations
mount above the exit of wide-belt sanders, brush heads and other finishing


OEM Assembly Plants for detecting
			Defects in paint
Residual sand scratches caused by incomplete polishing
Swirls / holograms


Marine
			Mold Department
Lamination Departments
					to more easily identify trapped air


Post-Mold
Hull, Deck and Small Parts Areas


Aircraft refinishing and service centers
Anywhere a quality inspection light should ... or can be used

LED Advantages over Florescent Lighting for Inspection:
Longer life-30,000 to 100,000 hours compared to 20,000-50,000 of linear florescent
Efficancy    LED lighting is capable of offering over 100 lumens per watt of energy consumed
Durable      LED lights are highly resistant to shock and vibration
Better visibility of inspection defects
Emit light in a specific direction
More energy efficient
Turn on instantly
Dimmable


“The Illuminator” Mounted for Inspection at Exit of Wide Belt Sander

Victor came up with a great idea... he suggested stacking 2 lights, one on top of the other, to have a taller area of
illumination. This allowed for much faster identification of surface defects and less manipulation of the part.

Identify Defects You Would Not Normally See Under Normal Plant Lighting Conditions

BEFORE: Normal Lighting In Small Parts Unload Area

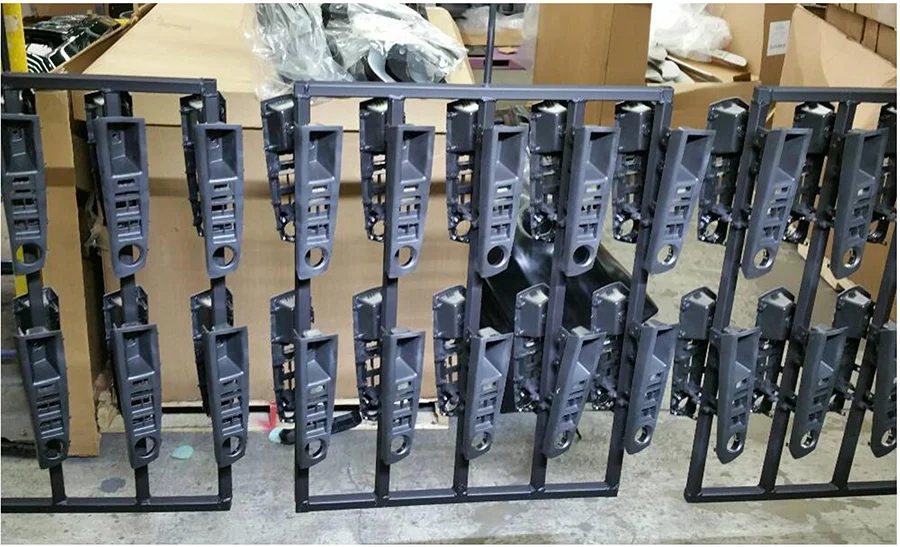

AFTER: Lighting from “The Illuminator” Allowed Plant to Inspect at Unload
